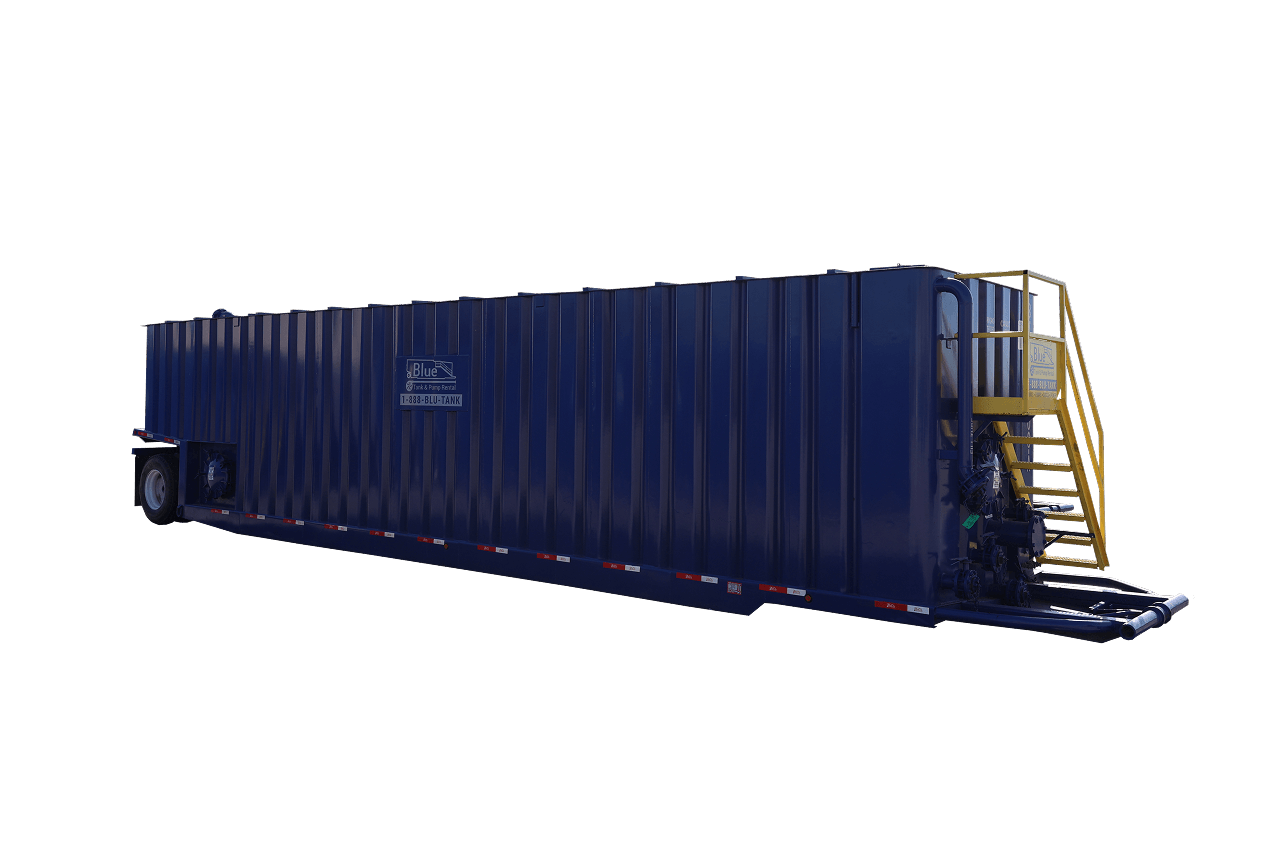

18K Open Top Tanks
Open Top Frac Tanks or Weir Tanks are ideal solutions for temporary settling tanks or applications where liquids can be open to the environment. These tanks are equipped with a rear fill tube, five valve or flange connections in front, 3 valve or flange connections in the rear, and an eight-inch valve or flange connection in the front and rear to manifold tanks together or to use 8” suction or discharge. Each tank has two weir walls that have multiple 8” ports on them to allow the wall to be used at multiple different heights. It can be setup for one to three compartments. Also with our design the weir wall is fully sealed allowing no seepage around the walls like competitor tanks. Its epoxy liner will make it suitable for a wide range of applications.
Other features include:
- Open Top and smooth walls allow for easy cleaning
- 2 Weir walls that have (6) 8” flanges on them to allow the liquid level to be at a range of heights for water treatment.
- Internal Ports have flanges on them to allow for internal piping to be connected to them simply for water treatment use.
- OSHA-compliant side stairways and platform
- Epoxy-lined for broad chemical resistance
- 3 22” side access manways for access to all three compartments between the weir walls
- V-bottom floors provide easy liquid draining
- 3” external fill tubes
- 4” butterfly valve drains
Like all of our tanks, these will be inspected inside and out when they return to our yards and before they leave to ensure they are in the best shape possible for the customer. These open-top tanks are ideal for many separation-based applications. We use these tanks in our temporary water treatment solutions in conjunction with our other equipment lines.
